Duplo PFI Blade B2+ Digital Cutting Table
Utilising a flatbed table and digital cutting technology, the PFi Blade B2+ digital cutting table produces short-run packaging, custom-shaped cards and labels without physical dies required. The PFi Blade will cut, kiss cut and score a range of substrates including paper, laminates, adhesives and synthetic stocks up to 1000 mm per second and up to 6mm thick. It’s an affordable and versatile solution for prototyping designs and short-run production.
No Dies required

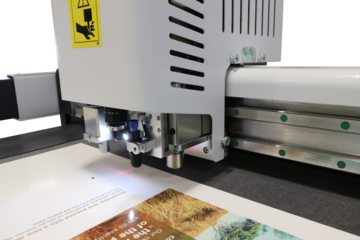

Utilising the PFi Blade Connect software, the triple tooling head follows the lines sketched on the cutting file to finish applications into any shape desired. Media is held in place on the flatbed through a suction zone, below the conveyor belt as the tooling head moves throughout the sheet. The PFi Blade comes included with four cutting tools and a scoring wheel, and up to 3 tools can be added in the tooling head. Set them to cut intricate shapes, kiss cut labels and stickers, and score fold lines to avoid toner cracking on packaging and folded pieces.
Frequently Asked Questions
-
The PFi Blade B2+ can cut, kiss cut, crease, and perforate a wide range of substrates including paper, laminates, adhesives, boards, and synthetic stocks.
-
It is ideal for producing packaging prototypes, custom boxes, pocket folders, shaped greeting cards, invitations, labels, tags, and POP retail displays.
-
It handles sheet sizes up to 800 mm x 600 mm and can cut substrates up to 3 mm thick with the press cut tool, or up to 6 mm thick with the optional oscillating knife.
-
The cutting speed reaches up to 1,200 mm per second, enabling efficient production of intricate short-run and high-value work.
-
It comes standard with a quadruple tooling head including a tangential knife, kiss cut knife, oscillating knife, and creasing wheel, all designed for versatile finishing.
-
Yes, it features automated registration, job changeovers, and a deep pile feeder with 8-inch stack capacity, reducing manual setup and operator intervention.
-
Absolutely. It uses DPC Connect software for easy job file preparation and integrates seamlessly into modern digital print workflows.
-
Yes, it is engineered for efficient power consumption and reduced waste, supporting sustainable production practices.
